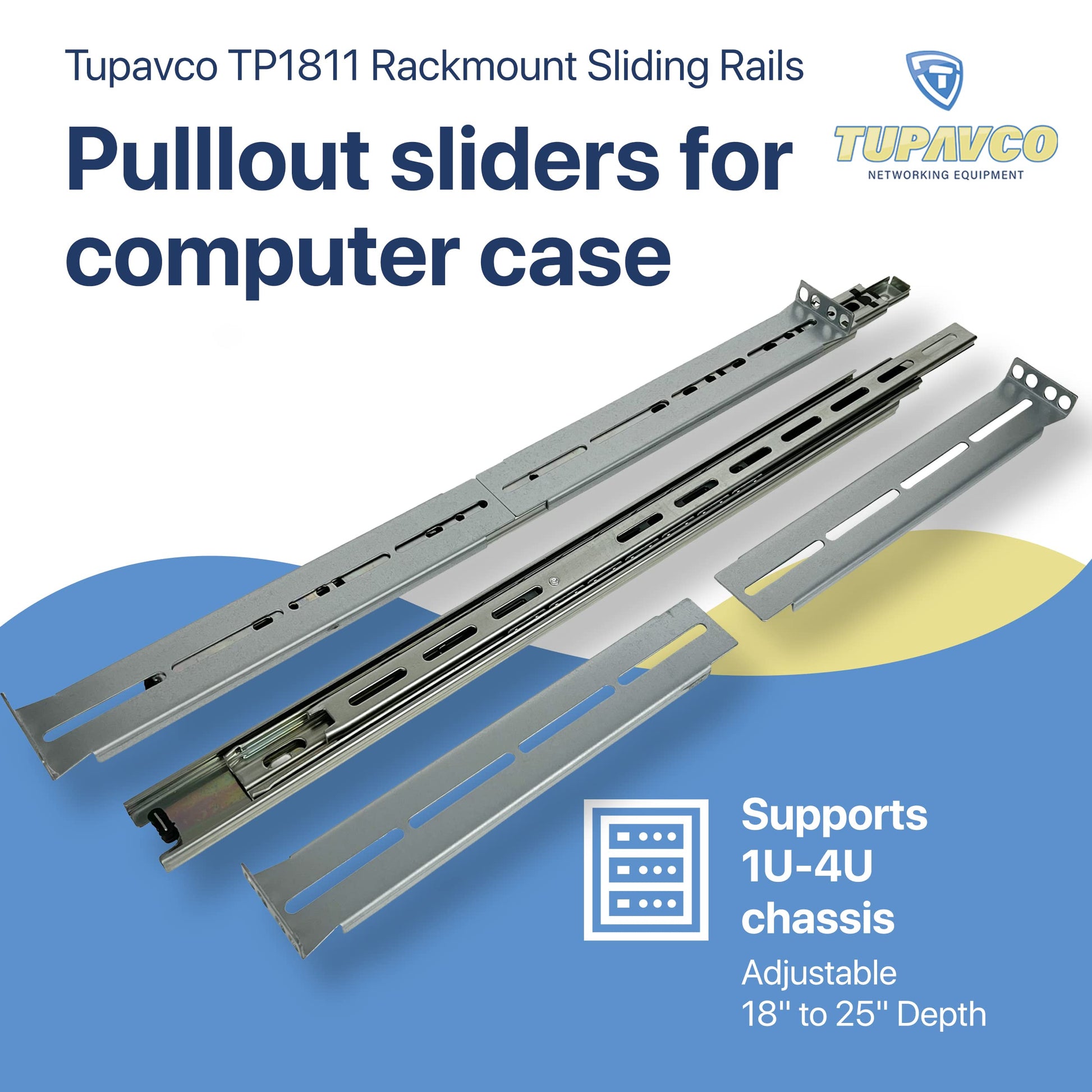

Rackmount Sliding Rails - Kit for 1U-4U Chassis (Adjustable 18" to 25" Depth) 2 or 4 Post Mount Sliders for Server Case (Compatible with Any Standard Rack, Cabinet, Computer Enclosure) Tupavco TP1811

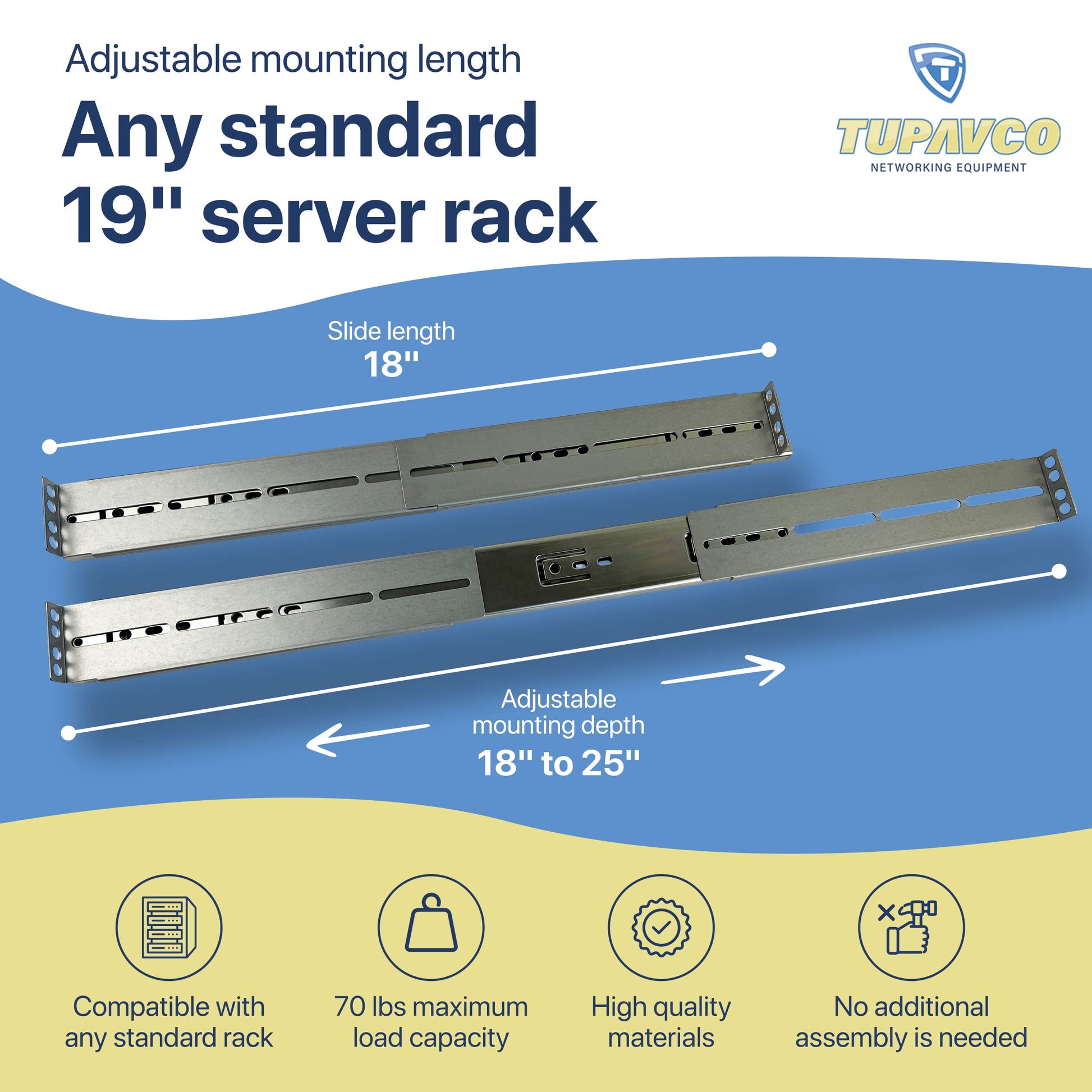

Adjustable mounting depth for rear posts from 18” to 25”
Slide length of 18” plus an additional 18” when slide is extended

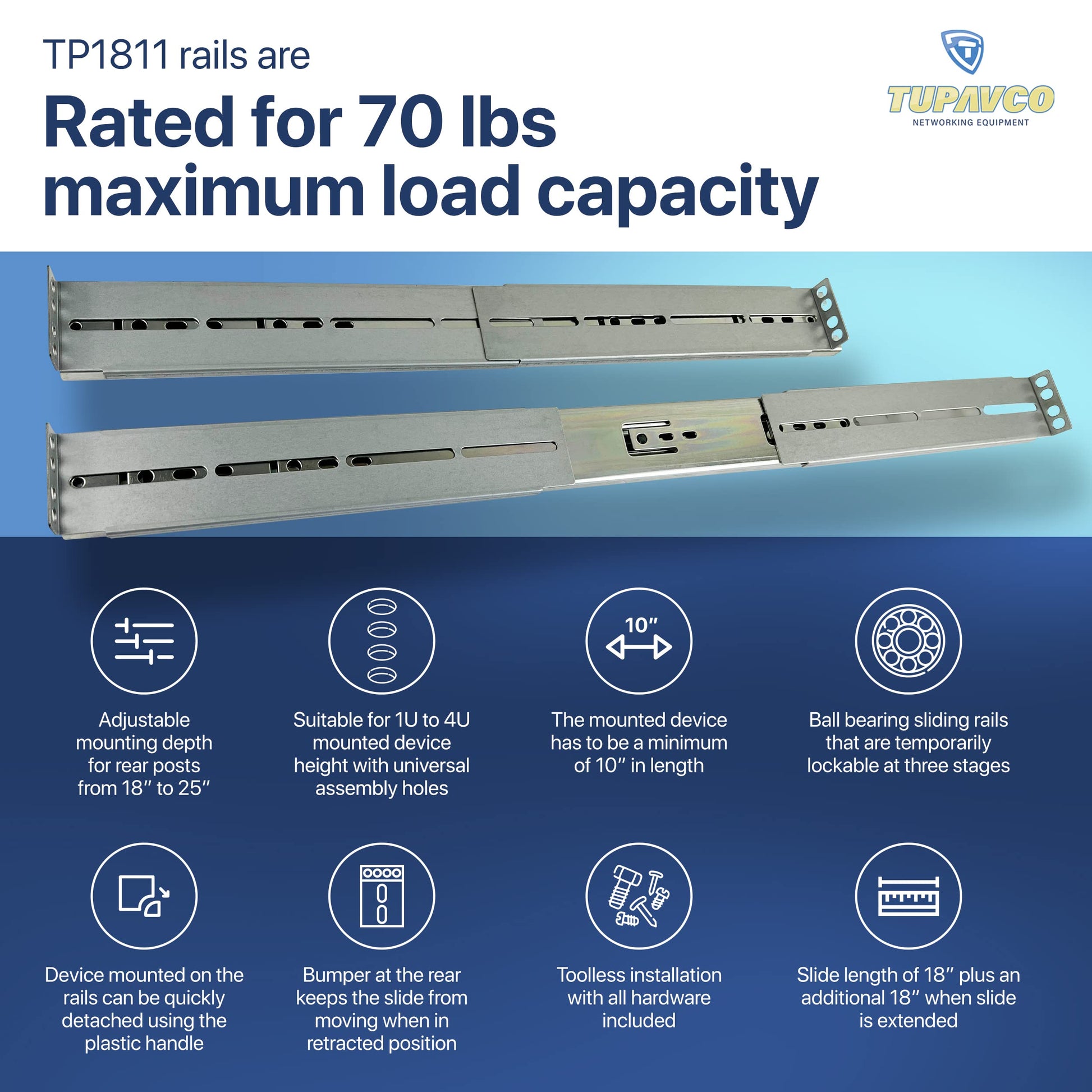

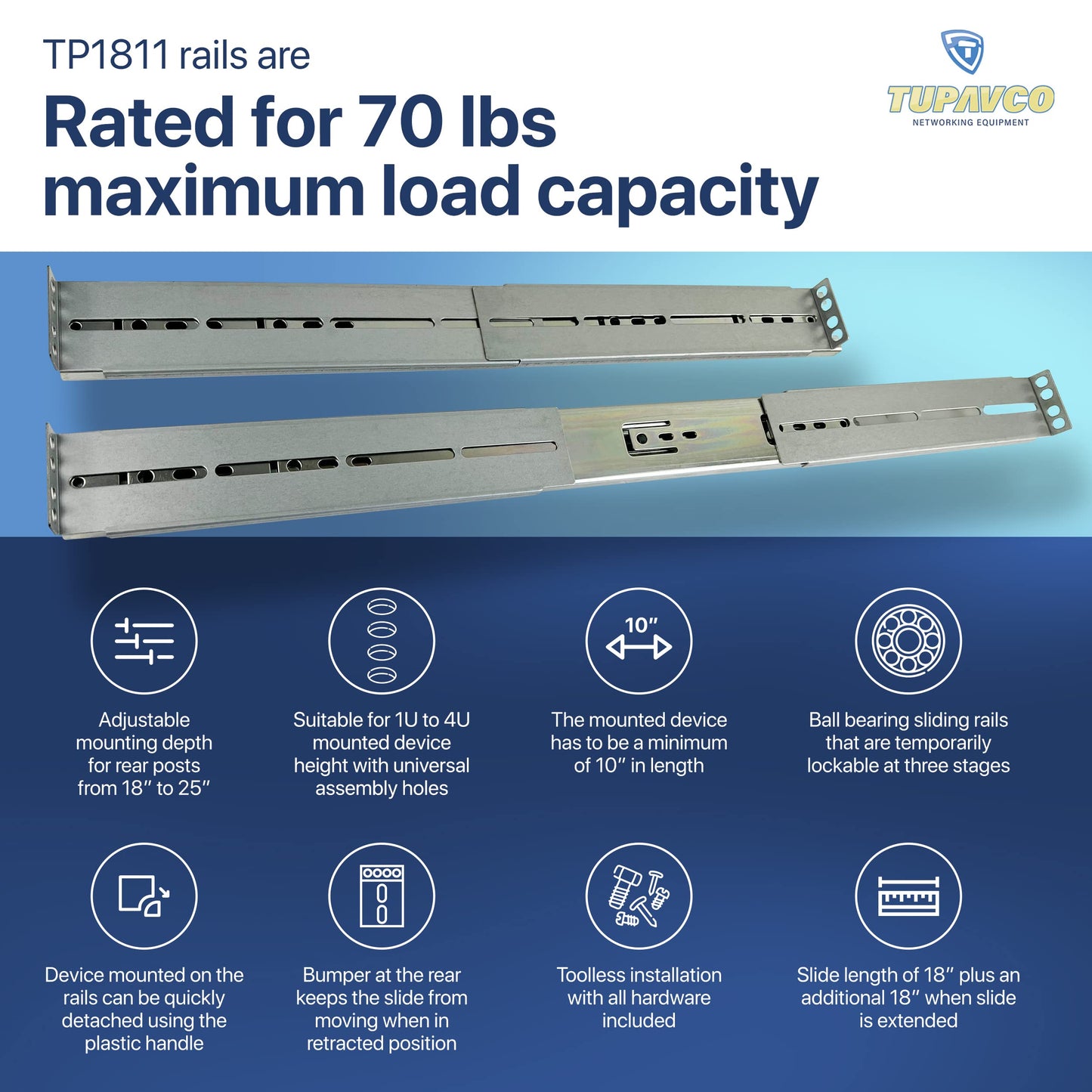

The TP1811 rails are rated for 70 lbs maximum load capacity
Suitable for 1U to 4U mounted device height with universal assembly holes
The mounted device has to be a minimum of 10” in length

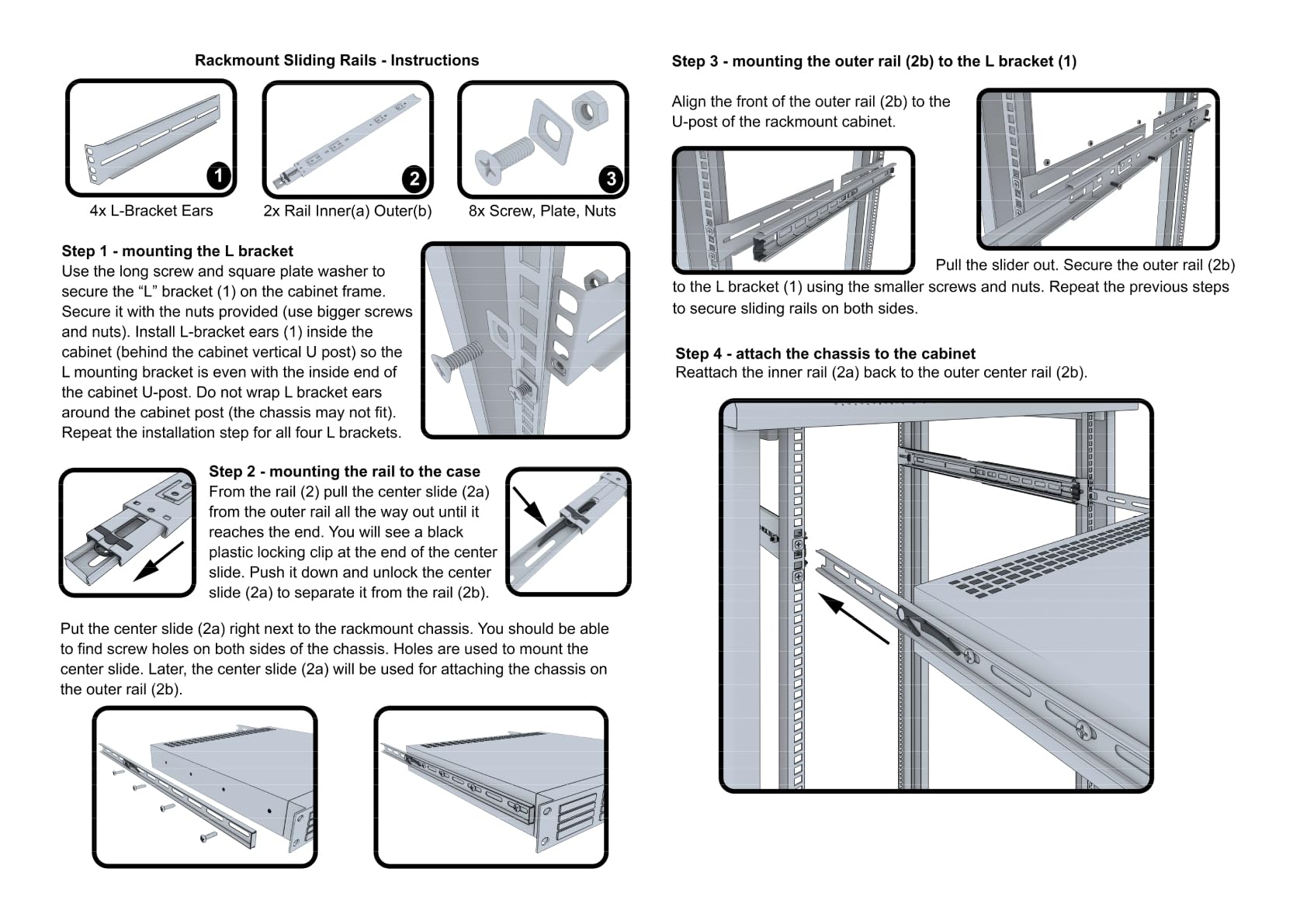

TIP: For more space (wide) install ears (L bracket) inside (behind) the vertical rack U post (not to wrap ears around the post) and reverse mount cage nuts (screw it from the inside) so the mounting bracket flush even with the end of the U-post

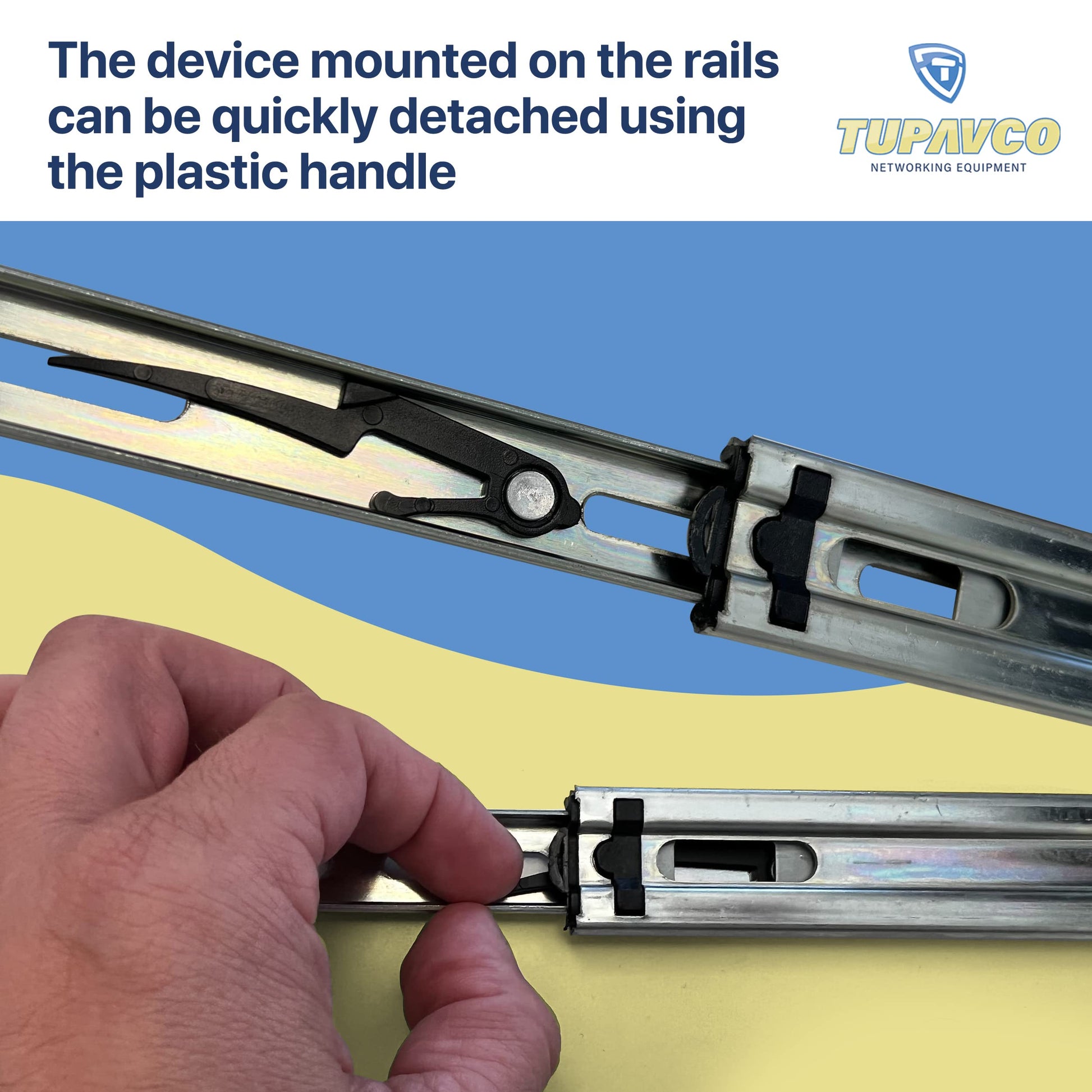

The device mounted on the rails can be quickly detached using the plastic handle

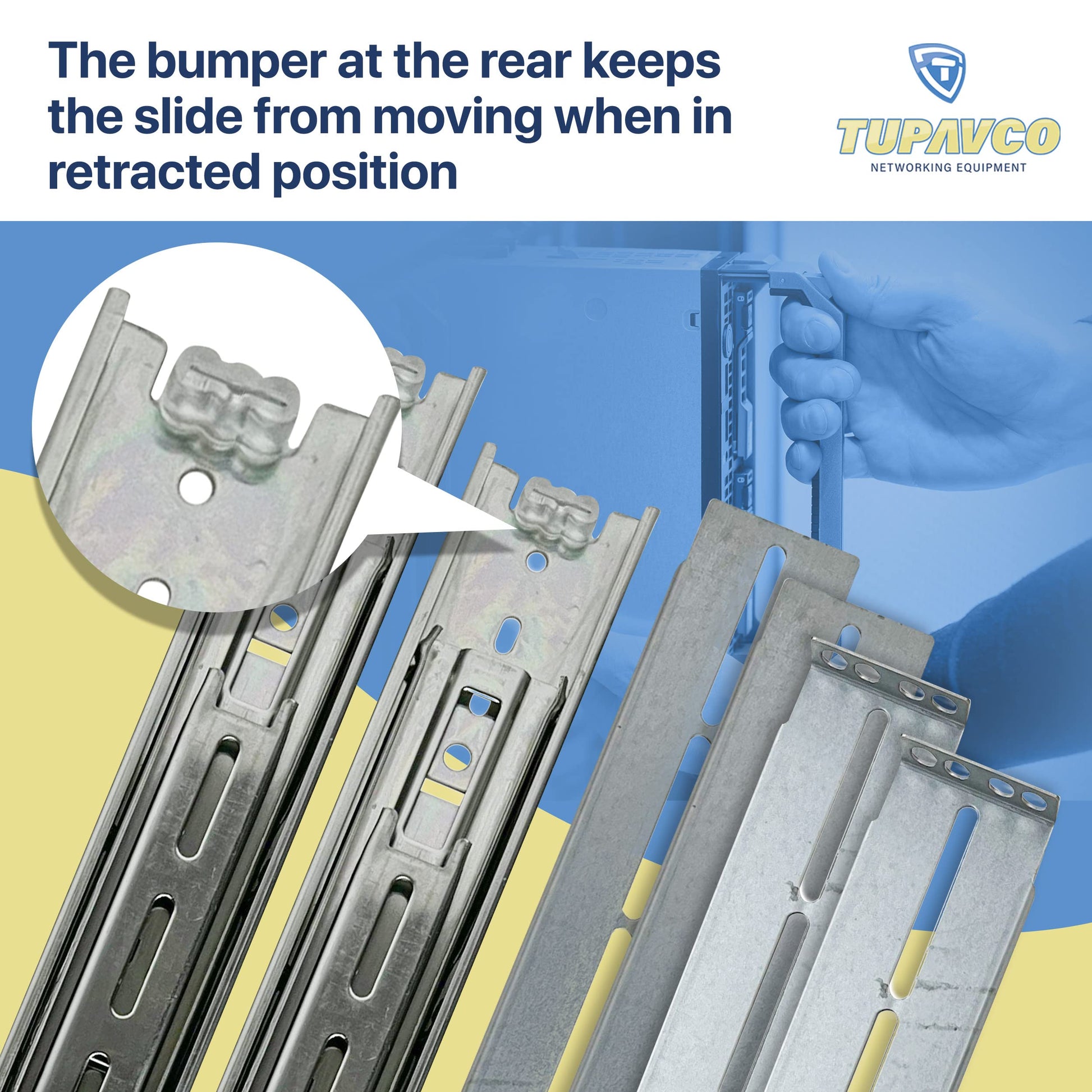

The bumper at the rear keeps the slide from moving when in retracted position

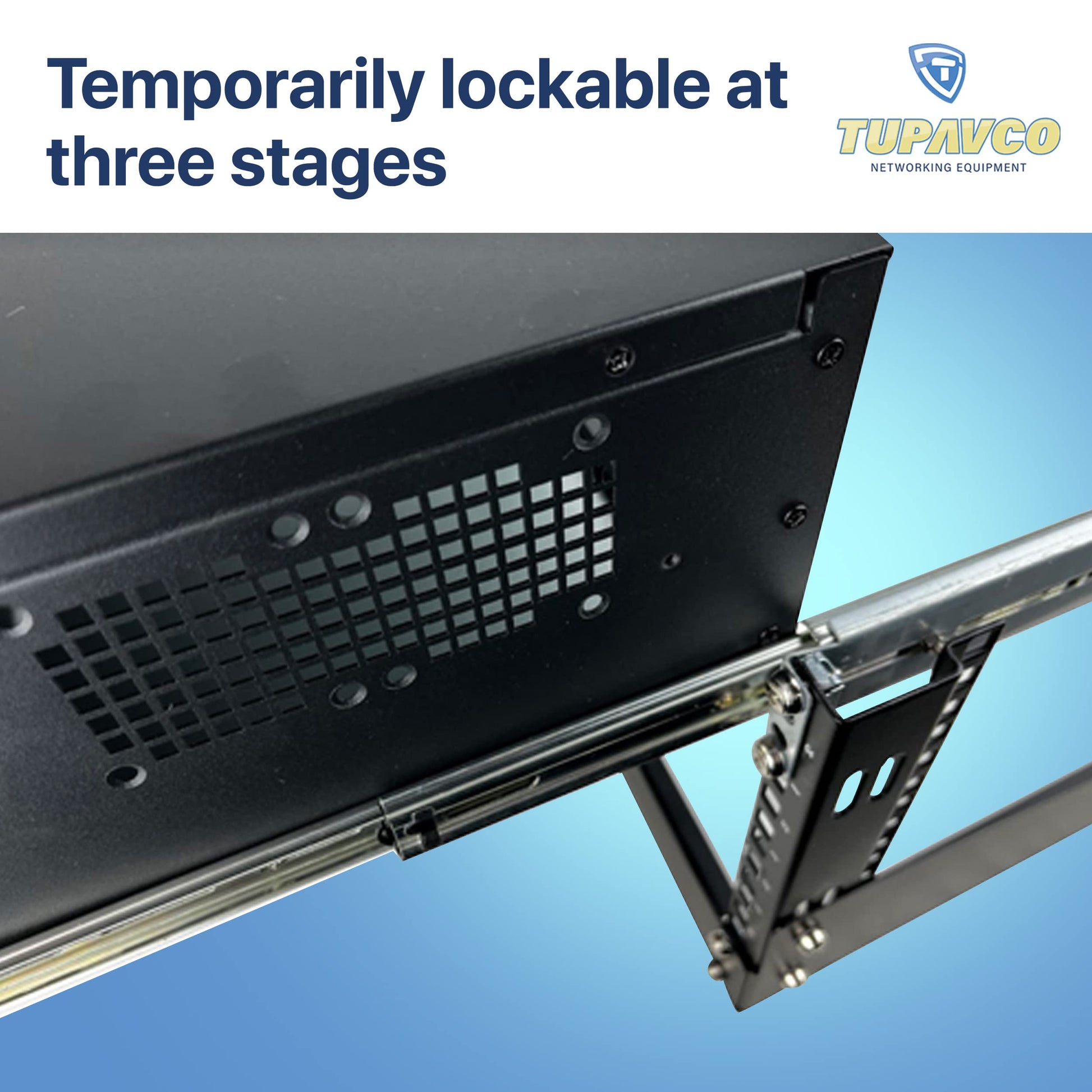

Ball bearing sliding rails that are temporarily lockable at three stages
